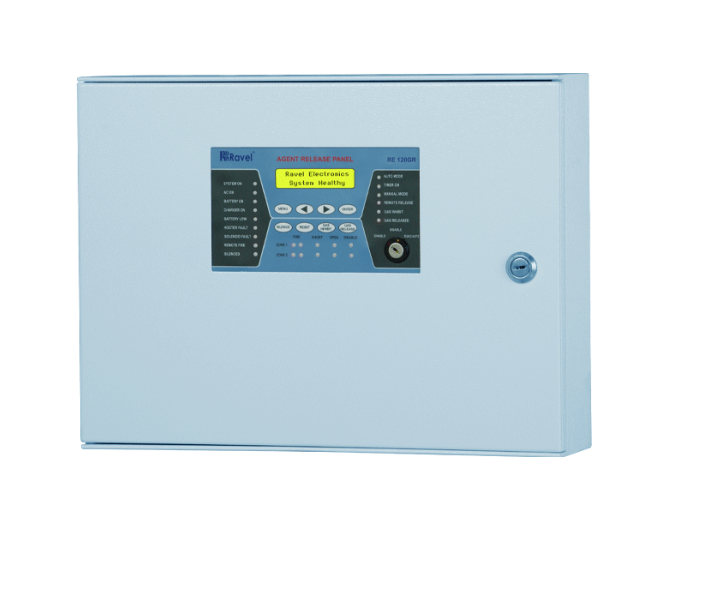

Agent Release Panel RE-120GR
The Microprocessor based CE Mark Agent release panel has dual function of detection and release of gaseous agent. The system has 16X2 LCD character, 2 zones detection circuit and One main and standby agent release circuit,it has various logic programmable options, linear power supply, the system has RTC facility, Auto & manual operational facility, solenoid output with ON and OFF timer, programmable Main / standby cylinder output facility, gas inhabit and instant release, manual release with time delay or without time delay and pressure low sensing facility.Battery polarity & Deep discharge protection.
Agent Release Panel RE-120GR
Power
220-240 VAC, 50 Hz.
Wire size : 1.5 Sq. mm with 600V insulationReleasing Agent Circuit
Operating Nominal Voltage : 24 VDC
Solenoid output : 0.75A
End-Of-Line Resistor : 4.7K, 1/4watt (for Solenoid Output)Battery (Lead Acid only)
Charging Voltage : 28 VDC.
Charging Current : 0.5 Amps (Max)
System Quiescent Current : 100mARemote Outputs
1 Form C relay for Fire, Fault and Cross Zoning.
Contact Rating : 2A @ 30 VDC & 0.5 A @125VAC.Initiating Device Circuits (Zone Circuit)
All zones are Class B wiring
Normal Operating Voltage : 14 – 21 VDC
Alarm Current : 15 – 30mA
Short Circuit Current : 40mA Maximum
Loop resistance : 50 ohms Maximum
End-Of-Line Resistor : 4.7K, 1/4watt
Standby Current : 6.8mA (2.4mA for Detectors)24 VDC Power For remote devices (Optional)
Operating Voltage : 24VDC, 300mA Max.Operating Condition
Operating Temperature 0 – 49° C / 32-120° F.
Relative Humidity 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ± 3° F.Contact us for the best price and service for this Fire Alarm Panel. Fill the contact us form.
